2400-2500MHz 100W GaN Anti-Module for Autel Anti Drone System C-Uas Mavic 3 Autel Fpv Ua Poland RF Module

Ask Lasest Price
Brand Name :	LDSK
Delivery Time :	1-3 workdays
Payment Terms :	D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability :	50000pcs per month

Add to Cart

Product Details
Company Profile

2400-2500MHz 100W GaN Anti-Module for Autel Anti Drone System C-Uas Mavic 3 Autel Fpv Ua Poland RF Module

433MHZ 400-500MHZ 428-438MHZ 420-450MHZ 400-450MHZ 100W anti-drone gan module

Power and Frequnecy support Customzation form 380MHZ- 5.8G, 10W,20W,30W, 40W, 50W,100W

--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the modul

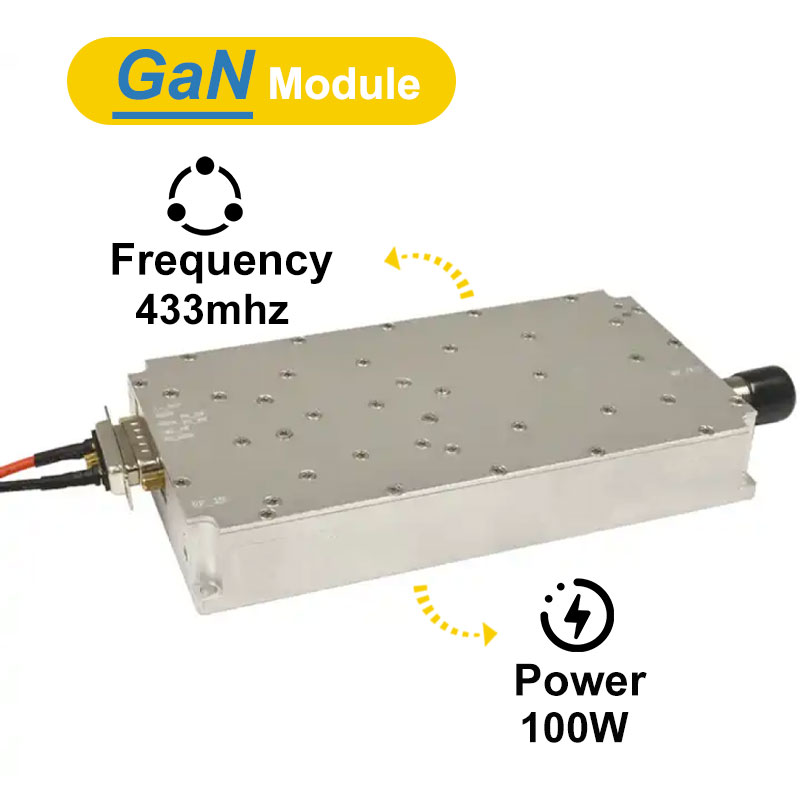

433Mhz 100W GaN Amplifier Module

Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:

① Power supply conditions: +30V power supply: 7W2 (male)
②RF input interface: SMA-KFD (optional)
③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.

Frequency	1000Mhz
Output Power(dBm)	100W(50dBm)
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.35
Output voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Supply current	+30Vdc@100W≤5.5A
Output RF connector	N-50KFD
Size	170×94×26.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;

Lead time

Quantity(PCS)	<100pcs	<500	500-1000	>1000
Lead time(Days)	3	3-5	7-12	To be negotiated

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1

Company profile

2400-2500MHz 100W GaN Anti-Module for Autel Anti Drone System C-Uas Mavic 3 Autel Fpv Ua Poland RF Module

Packing and Delivery

Selling Units:	Single item
Single package size:	20X10X5 cm
Single gross weight:	0.2kg
Package Type:	Each piece is individually packed into a bag and then packed into a carton.
