    Autel Anti Drone System 100W GaN Module For Mavic 3 Autel Fpv Ua Poland RF Module

    Ask Lasest Price
    Brand Name : LDSK
    Delivery Time : 1-3 workdays
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 5000pcs per month
    • Product Details
    • Company Profile

    Autel Anti Drone System 100W GaN Module For Mavic 3 Autel Fpv Ua Poland RF Module

    Product overview

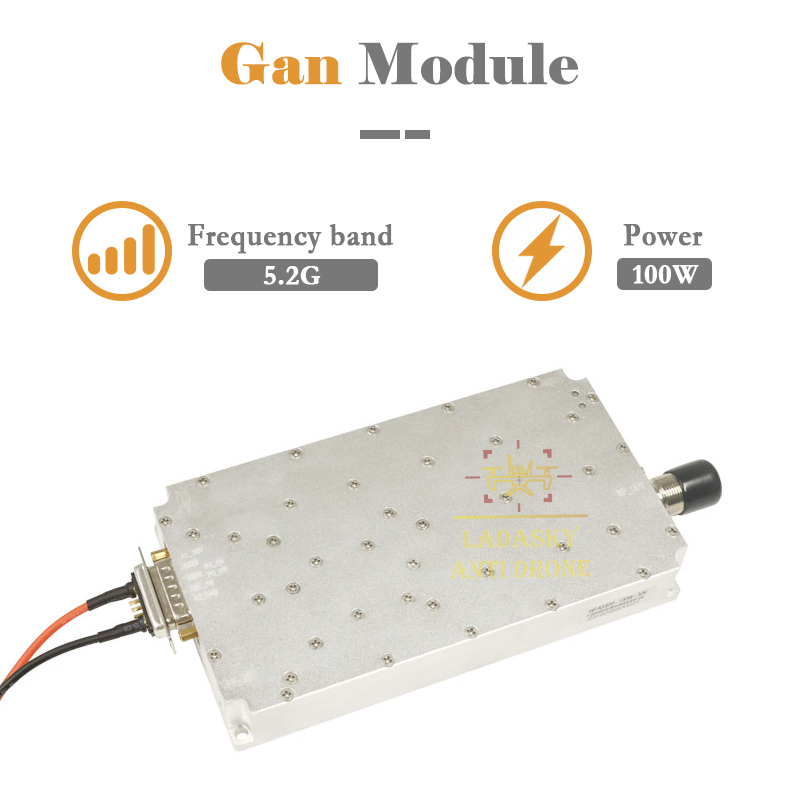

    5.2G 5150-5350MHz 100W anti-drone gan module

    Power and Frequnecy support Customzation form 90MHZ- 5.8G, 10W,20W,30W, 40W, 50W,100W

    --The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the modul


    Appearance and installation instructions:
    1. Overall dimensions: 170*94*26.5mm
    2. Interface form:
    Power supply conditions: +30V power supply: 7W2 (male)
    RF input interface: SMA-KFD (optional)
    RF output interface: N-KFD
    Control interface:
    a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on, low level or floating, the power amplifier turns off)
    b. Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
    3. Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
    Parameters
    Frequency5150-5350Mhz
    Output Power(dBm)50dBm
    In-band group delay≤1us
    Gain45±1.0,45±1.0 (external input 9dbm, power amplifier output 50dbm)
    In-band fluctuation (dB)≤2.5 (peak-to-peak value)
    Input voltage standing wave ratio≤1.35
    Output voltage standing wave ratio≤1.3
    Supply voltage Typical+30Vdc Range: 24-36V
    Supply current+30Vdc@100W≤6.5A
    Output RF connectorN-50KFD
    Size170×94×26.5mm (excluding connectors)
    Input signal sourceBuilt-in high-efficiency modulation sweep signal source, which can also be connected to external sources
    1 7W2 male socket
    2 Feedthrough capacitors (from top to bottom)
    1: A1 is the 30V power input, and A2 is GND;
    2: The first pin of 7W2 is the PA_SW power amplifier enable;
    3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off;
    4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;
    Product Description


    Packing and Delivery
    5.2G 5150-5350MHz 100W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Ua Poland RF Module
