    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment

    Ask Lasest Price
    Price : $1,500.00/cases 1-49 cases
    Brand Name : LDSK
    Delivery Time : 5-8 workdays
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 5000pcs per month
    • Product Details
    • Company Profile

    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment

    Product Description

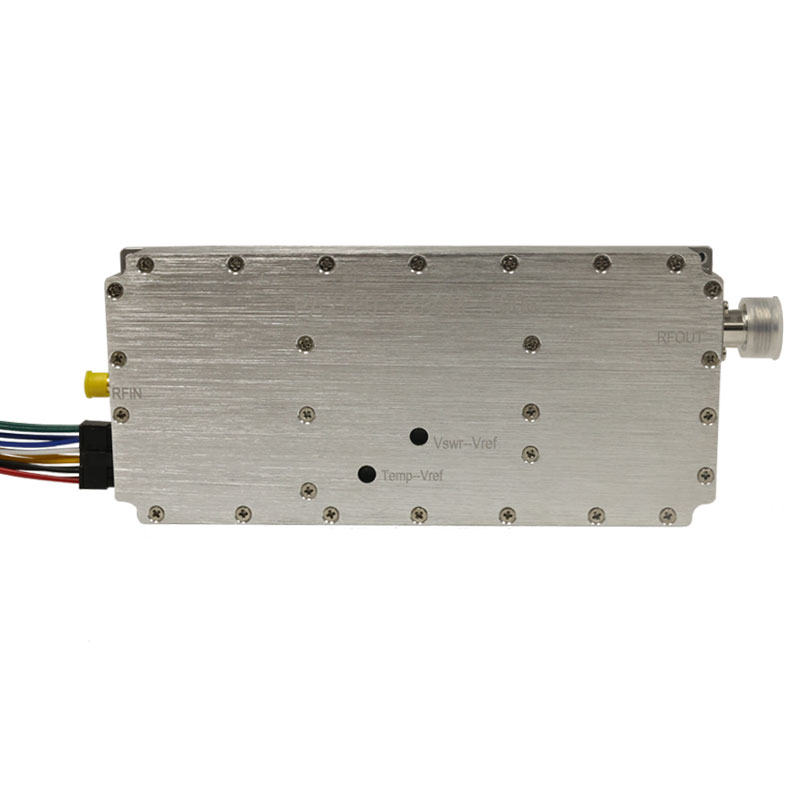

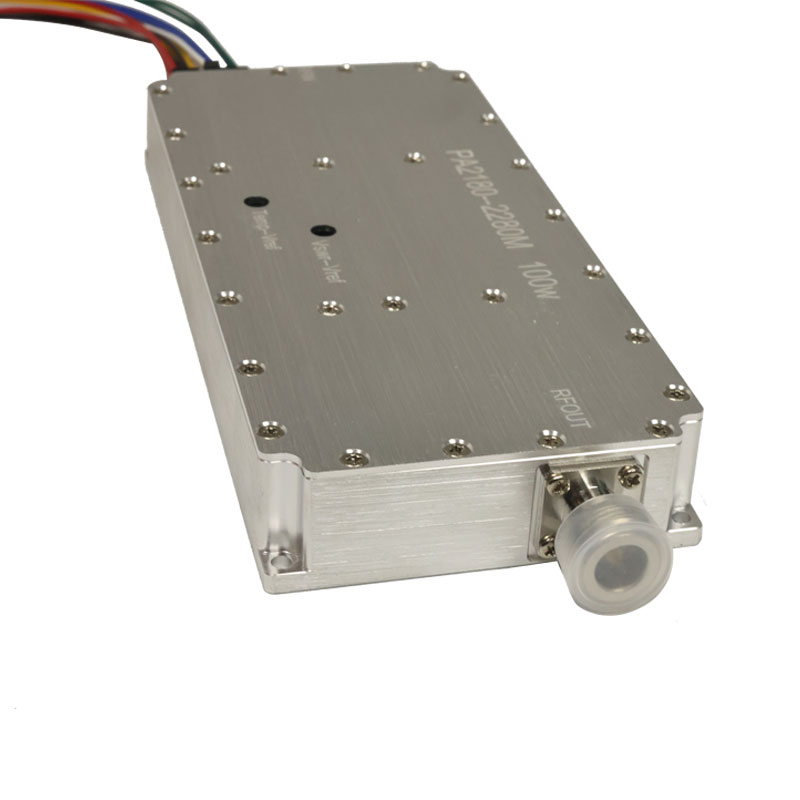

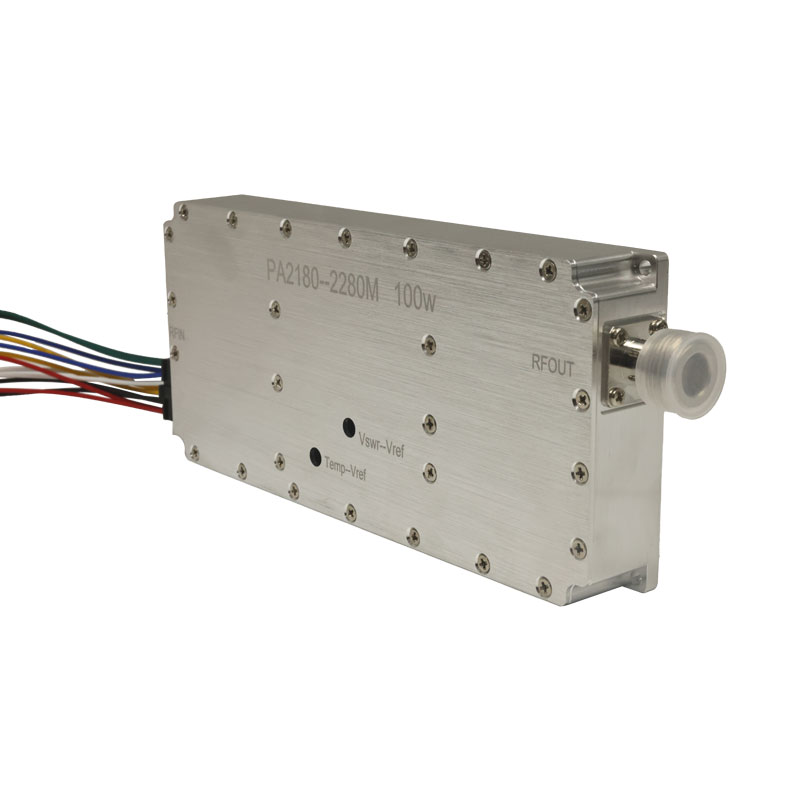

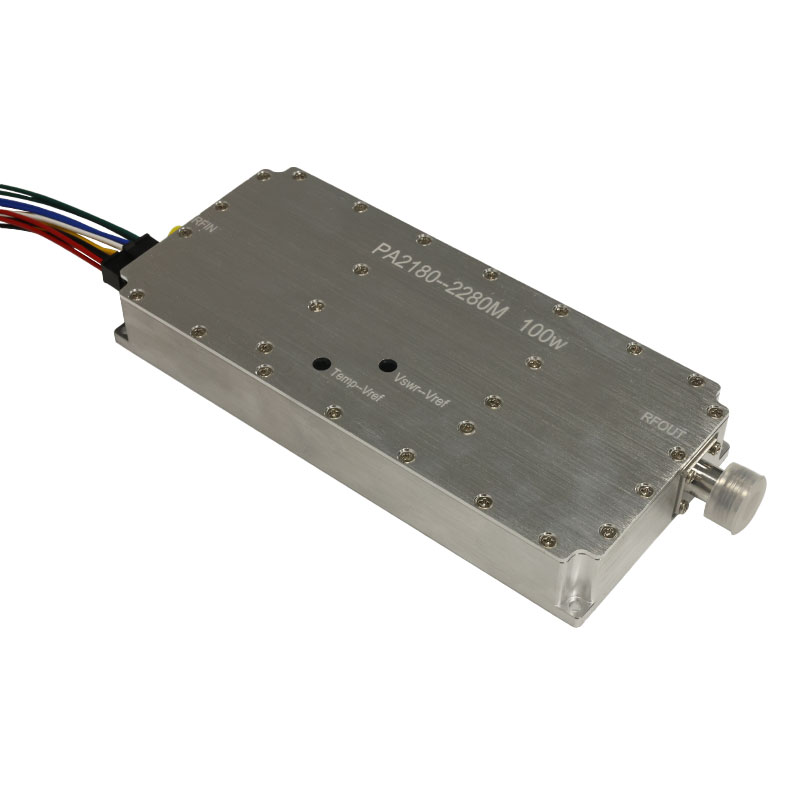

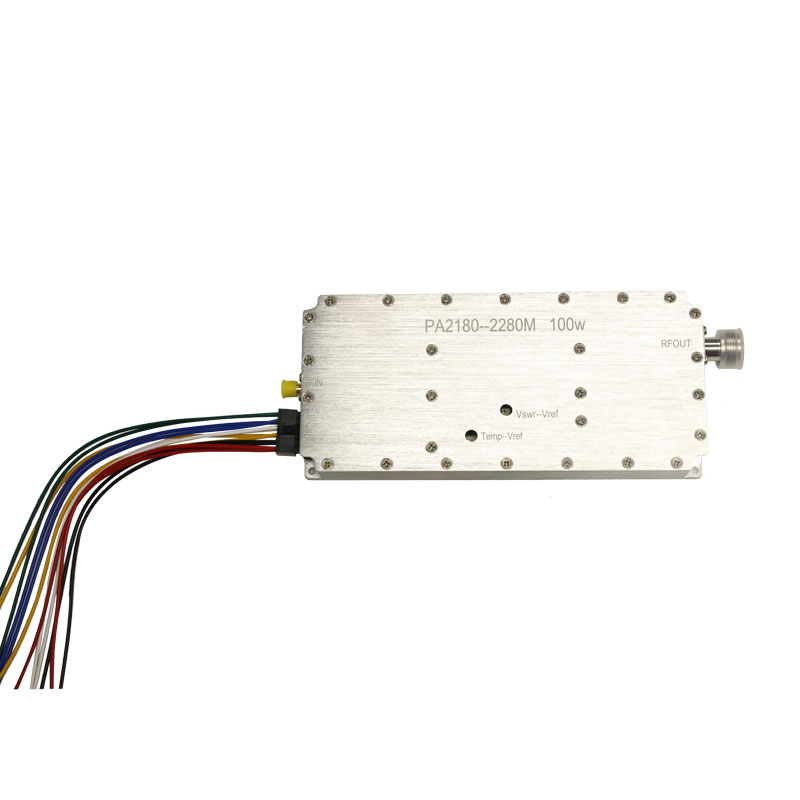

    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    100W RF Amplifier Module Temperature Voltage Protected For Anti Drone Equipment
    Specification
    Frequency
    2180-2280mhz
    Power supply
    100W
    Saturated output power
    50±1dBm @input=5dbm
    Working voltage
    DC:28-32V
    Protection
    Temperature protection 90 degrees,Reverse Power 30W protection
    Working current
    ≤8.5A
    Power supply monitoring interface
    Power supply: Perform capacitive

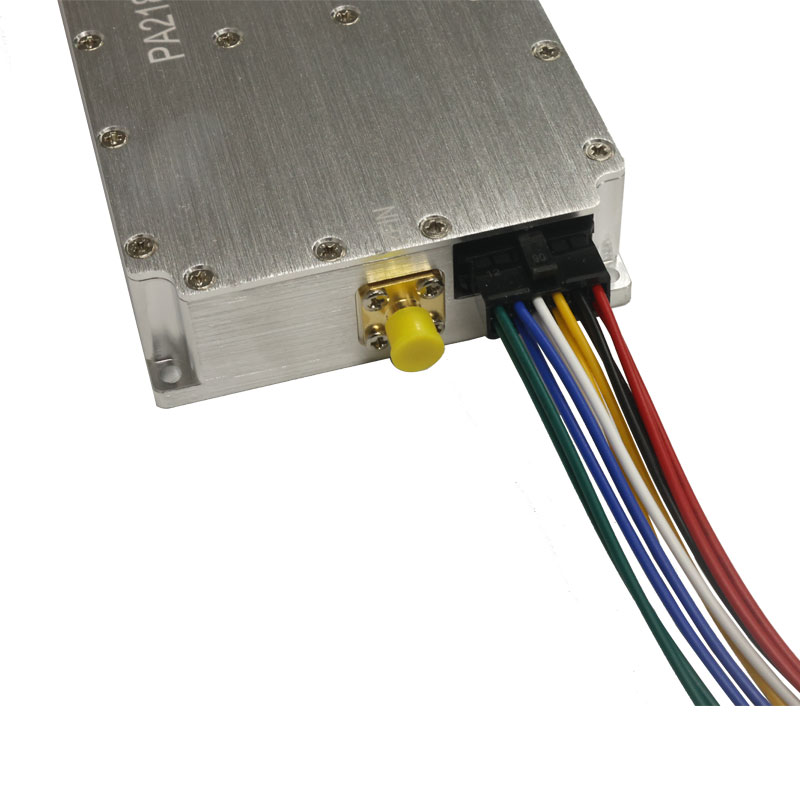

    Pin1:GNDPin2:GND Pin3: 28V Pin4: 28V Pin5: 28VPin6: 28V Pin7: GND Pin8: GND Pin9:Power indication(0-3.3V,Power detection voltage)Pin10:VSWR protection(0-3.3V,Alarm indication, high-level protection)Pin11:Enable control(3.3-5V,High level on, low level off 3.3-5V)Pin12:Temperature indication(0-5V,Temperature detection voltage, temperature voltage attached diagram)
    Iinput RF port
    SMA
    Output RF port
    N-F
    Dimensions
    170*77*24mm
    Working temperature
    65℃
