| Parameter | Specification |

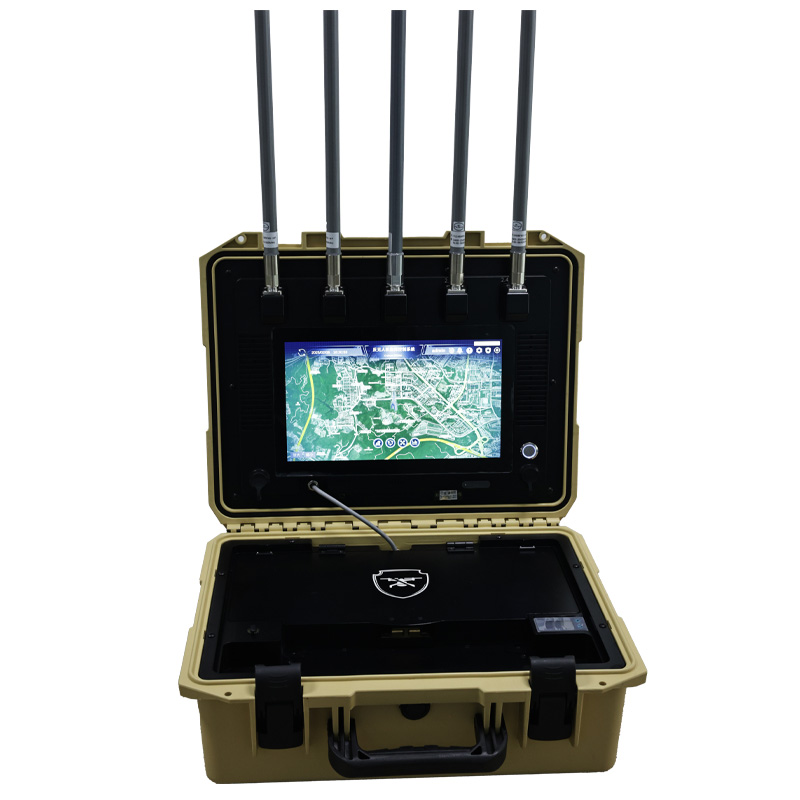

| Device Name | Portable Drone Spectrum Detector |
| Detection Range | 2 - 8 KM |
| Spectrum Detection Frequency Band | 45MHz ~ 6000MHz |
| Spectrum Identification Capability | - Supports drone spectrum identification |
| - Recognizes over 100 drone models |
| - Supports DJI O3 and DJI O4 decryption |
| - Supports RID data reception |
| Supported Drone Models for Positioning | DJI Phantom 4PV2, DJI Mavic 2, DJI Mavic 3, DJI FPV, DJI 2S, DJI
M300, etc. |
| Screen Size | 12.6 inches |
| Screen Resolution | 2560 × 1600 |
| Directional Antenna Dimensions | 162mm (L) × 100mm (W) × 82mm (H) (Flat position) |
| Device Dimensions | 514mm (L) × 418mm (W) × 203mm (H) (Closed position) |
| Package Dimensions | 590mm (L) × 490mm (W) × 270mm (H) |
| Power Consumption | 40W |
| Total Weight | 16 KG |
| Battery Capacity | 720Wh |
| Operating Time (Full Charge) | 18 hours (Ideal conditions) |
| Connectivity | Network connection (RJ45) |
| Network Support | 4G mobile communication |
| Operating Temperature | -20℃ ~ +50℃ |
| Charging Voltage | AC 220V |
| Protection Level | IP65 |
Product Technical Speficication
(1)Pilot Positioning – The device can locate and display the
pilot's position in real time.
(2)Drone Positioning – Capable of detecting and tracking the
drone's flight location.
(3)Unique Identification – Identifies the drone’s unique serial
number (SN).
(4)Network Expansion – Supports network integration with backend
management platforms and multi-device collaboration for large-area
coverage.
(5)Rapid Deployment – Deploys in seconds, ready to use upon
startup.
(6)Portable & Compact – Suitcase-style design, lightweight and easy
to carry.
Lead time
| Quantity(PCS) | <100pcs | <500 | 500-1000 | >1000 |
| Lead time(Days) | 3 | 3-5 | 7-12 | To be negotiated |
Customization
| Item | Logo | Frequency | Power | Packing |
| MOQ(PCS) | 1 | 1 | 1 | 1 |
Company profile
Shenzhen ladasky technology Co,.LTD, specializing in the field of
advanced technology. Our company is located in the vibrant city of
Shenzhen, known as a hub of innovation and technology in China.
Our main products include RF module and anti FPV, which are
designed with cutting-edge technology and strict quality control to
meet the diverse needs of our customers. The RF module offers
high-performance and stable signal transmission, enabling seamless
communication in various applications. The anti FPV solution
provides effective protection against unauthorized interference and
ensures the security and privacy of video transmission.
We pride ourselves on our strong R&D team, composed of experts
and engineers with rich experience and professional knowledge in
the field. They are constantly exploring and innovating to bring
forth new and improved products that stay ahead of the market
trends.
Our manufacturing facilities are equipped with state-of-the-art
machinery and adhere to international quality standards. This
ensures that every product leaving our factory is of the highest
quality and reliability.
Packing and Delivery| Selling Units: | Single item |
| Single package size: | 20X10X5 cm |
| Single gross weight: | 0.2kg |
| Package Type: | Each piece is individually packed into a bag and then packed into a
carton. |
